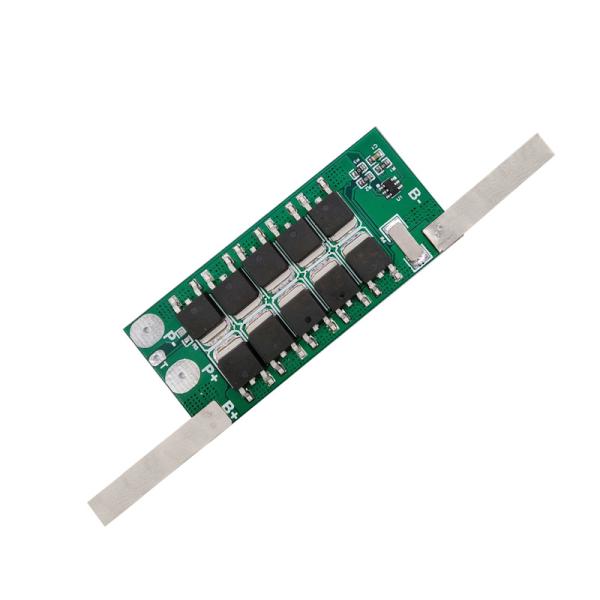

Lithium Battery BMS Factory Sale 32700 32650 3.2V PCBA 1S Lifepo4
Bms Solar Energy Storage System Battery with Smart Bms
Overview
Quick Details
Model Number: OK1S5-10ABMS
Type: bms pcba
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Supplier Type: BMS
Copper Thickness: 0.1mm, 1oz
Min. Hole Size: 2mm
Service: OEM Services Provided
Base Material: FR-4
Surface Finishing: HASL Lead Free
Supply Ability: 30000 pcs per Month
Packaging & Delivery
Port: shenzhen
It is an intelligent protection board scheme specially designed for
28 series battery packs of electric bicycles and motorcycles. It is
suitable for lithium batteries with different
chemical properties, such as lithium ion, lithium polymer, lithium
iron phosphate, etc.The protection board has strong load
carrying capacity and the maximum ontinuous discharge current can
reach 150A.
● 3-28 cell series protection
● Various protection functions for charging and discharging
● Hardware discharge over - current, short - circuit protection
function processing
● Reserve discharge control switch and discharge temperature
protection position
● Very low static consumption current
Protection function description,
Overcharge protection: When the battery is under the charging
state, the voltage keeps going up. When the protection board
detectsthat the voltage of any cell is higher than the overcharge
protection value, the protection board will start timing
immediately.When the time reaches the overcharge protection delay,
the protection board will turn off the charging MOS tube, at that
time, itcannot be charged.
Overcharge protection recovery: After the overvoltage protection
appears on the protection board, the battery voltage will goingdown
under the static or discharge state of the battery. When the
protection board detects that each voltage is lower than
therecovery voltage of the overcharge protection, the protection
board will output a signal and turn on the charging MOS tube to
charge.
Over-discharge protection: When the battery is under the discharge
state, the voltage keeps going down. When the protection board
detects that the voltage of any cell is lower than the overcharge
protection value, the protection board will start timing
immediately. When the time reaches the over discharge protection
delay, the output signal of the protection board will turn off the
discharge MOS tube, the load lock circuit will work, but, it cannot
discharge at this time.
Over discharge protection recovery: After the over discharge
protection appears on the protection board, the battery voltage
will going up under the static or discharge state of the battery.
When the protection board detects that each voltage is higher than
the recovery voltage of the over discharge protection. At this
time, disconnect the load or charge, the protection board will
output a signal and turn on the charging MOS tube to charge.
Overcurrent protection: When the battery is under the static or
discharge state, the current suddenly increases. When the
protection board detects that the current reaches the overcurrent
protection value, the protection board will start timing at that
time. When the current duration in the circuit reaches the
overcurrent protection delay time, the output signal of the
protection board will turn off the discharge MOS tube, and the load
lock circuit will work. At this time, the discharge cannot be
conducted.
Overcurrent protection recovery: After the discharge overcurrent
protection appears on the protection board, the discharge MOS tube
is turned off, and the current in the loop becomes 0. At this time,
the load is disconnected or charged, the output signal of the
protection board will turn on the discharge MOS tube to discharge.
FAQ
Q1: What kind motors you can provide?
A1: Our main products are BMS,PCB,PCM,brushless dc motor, brushless
dc gear motor, brushed dc motors, Servo Motor, dc gear motor, micro
dc motor, ac gear motor, planetary gear motor and drivers.
Q2: What is MOQ?
A2: MOQ is 1pcs.
Q3: Are you motor manufacturer?
A3: Yes, we are manufacturer, we develop and produce the motors and
drivers by our own factory in GuangDong. We can offer One-stop
service and accept OEM & ODM orders.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible motor. We have
technical people who can teach how to get the function by
different wire connection.
Q5: How about your delivery time?
A5: Usually, customized motor around 10-25days. standard motors
within 3 days, please contact for checking.
Q6: What is the warranty?
A6: All of our products provide 12 months warranty from the date of
cargo shipment.
Q7: What is the payment term?
A7: We accept by T/T, Western Union, Paypal, Ali Pay...you can pay
in USD,Euro,CNY,HKD etc.
